OX640 Series Outdoor LED Display Panel
The OX640 series is the latest generation of outdoor LED displays. It features a slim, solid aluminum frame with fully sealed aluminum chassis modules, offering high-level IP68 waterproof protection and durability in tough outdoor environments. The advanced common-cathode design can save up to 50% in energy and reduce heat by 40%. The high-efficiency heat dissipation structure also effectively lowers the operating temperature. All of these innovative features contribute to the OX640 series LED display’s longer lifespan compared to competitors.
Flexible Size and Delicate design
The OX640 series is designed for a smaller outdoor LED Screen to closely match the required LED wall dimensions. You can also use it to match our OX640 series for the final row or column of the LED screen.

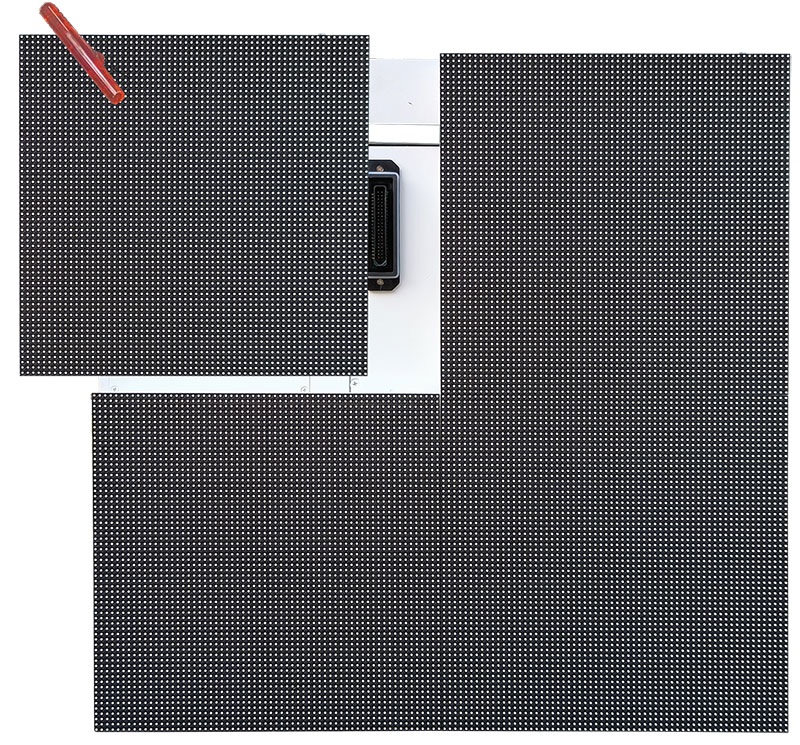

Full Front & Rear Installation and maintenance
Not only the Modules, But Even the whole Power unit box can be swapped from the front or back. The OX640 series outdoor panel offers customers more installation options and significantly reduces labor costs for future maintenance.
Fully Sealed Die-cast aluminum housing module
The OX640 Series die-cast aluminum modules are not only solid enough to withstand harsh outdoor conditions but also help dissipate heat, keep the screen running more stably, and extend its lifespan.
Advanced Power Saving technology, 1kWh/㎡ less per day!
Power consumption in the common-cathode configuration can be managed efficiently because each anode has its own voltage supply. It allows circuit designers to supply controlled voltage levels to each LED color, significantly reducing the total power consumption of the LED display.
Up to 15000 nits of brightness, Optional
Although the 8000-nit standard brightness of the oX series is sufficient for most outdoor scenarios, we also offer a 15,000-nit option for customers with higher brightness needs who want to attract more attention as people pass by.
OX640 Series Specifications
| Model | OX640-P4.4 | OX640-P5.7 | OX640-P6.7 | OX640-P8 |
|---|---|---|---|---|
| Pixel Pitch | 4.44mm | 5.71mm | 6.67mm | 8mm |
| LED Type | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Module Size(W*H) | 320*320mm | 320*320mm | 320*320mm | 320*320mm |
| Module Resolution | 72*72 | 56*56 | 48*48 | 40*40 |
| Panel Resolution(W*H) | 144*144 | 112*112 | 96*96 | 80*80 |
| Density (Pixels/㎡) | 50,625 | 30,625 | 22,500 | 15,625 |
| Brightness | 8000-15,000cd/m² | 8000-15,000cd/m² | 8000-15,000cd/m² | 8000-15,000cd/m² |
| Viewing Distance | ≥4.4m | ≥5.7m | ≥6.7m | ≥8m |
| Gray Level | 16bit | 16bit | 16bit | 16bit |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Input Power | ≥110-220V 50/60Hz | ≥110-220V 50/60Hz | ≥110-220V 50/60Hz | ≥110-220V 50/60Hz |
| Power consumption | 180w-600w/m² | 180w-600w/m² | 180w-600w/m² | 180w-600w/m² |
| Service Type | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Protection | IP68 | IP68 | IP68 | IP68 |
| Working Temperature | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C |
| Working Humility | 10-80% | 10-80% | 10-80% | 10-80% |
| Panel Dimensions | 960*960*75mm | 640*640*75mm | 640*640*75mm | 640*640*75mm |
| Panel Weight | 12kg | 12kg | 12kg | 12kg |
Application Scenarios
Shopping mall / Car dealer / Highway Billboard / School / commercial building
