RL1000 Series
Best value Stage LED display Panel

  • 500*1000 Diecast Aluminum Cabinet

  • Indoor P2.6/2.9/3.9, Outdoor P2.6/P2.9/P3.9/P4.8

  • ≥7680Hz Refresh Rate and 14-Bit Color Depth

  • Front and Rear Dual Maintenance

  • -10 degree to +15 degree curve assembly available

  • Inventory available, quick delivery

  • 3 year technical support and warranty, lifetime maintaining

cheap-rental-LED-panel

description specification Gallery Related products

RX1000 Series stage rental lED Display

The RX1000 stage rental LED display is designed for quick/easy install/dismantle for those not permanent installation scenarios, they are also easy to be transported to different location by road case package.

cheap-rental-LED-panel

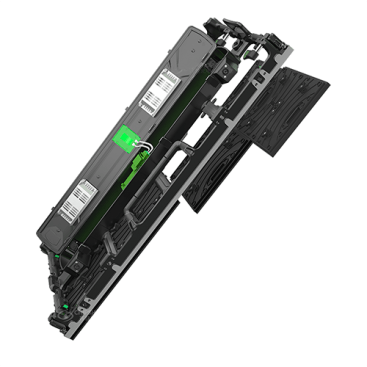

convenience & Versatility

Universal modular design is applicable to different pixel pitch both for indoor and outdoor. Front and rear access magnetic module and detachable power box bring quick and easy maintenance without any tool.

RL-rental-panel-design

Foldable corner protector

Foldable corner protector is the most efficient way to reduce damage installing/dismantling and transportation, could save a lot of repairing cost and time.

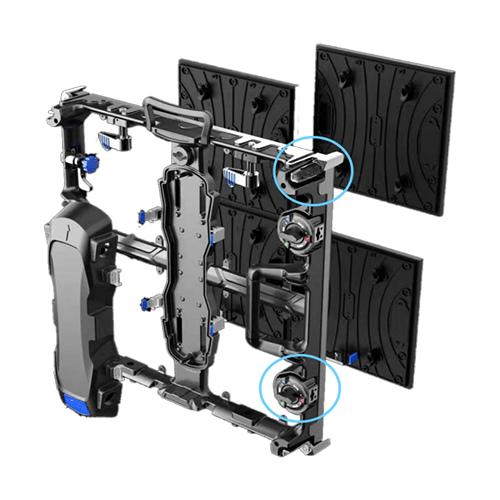

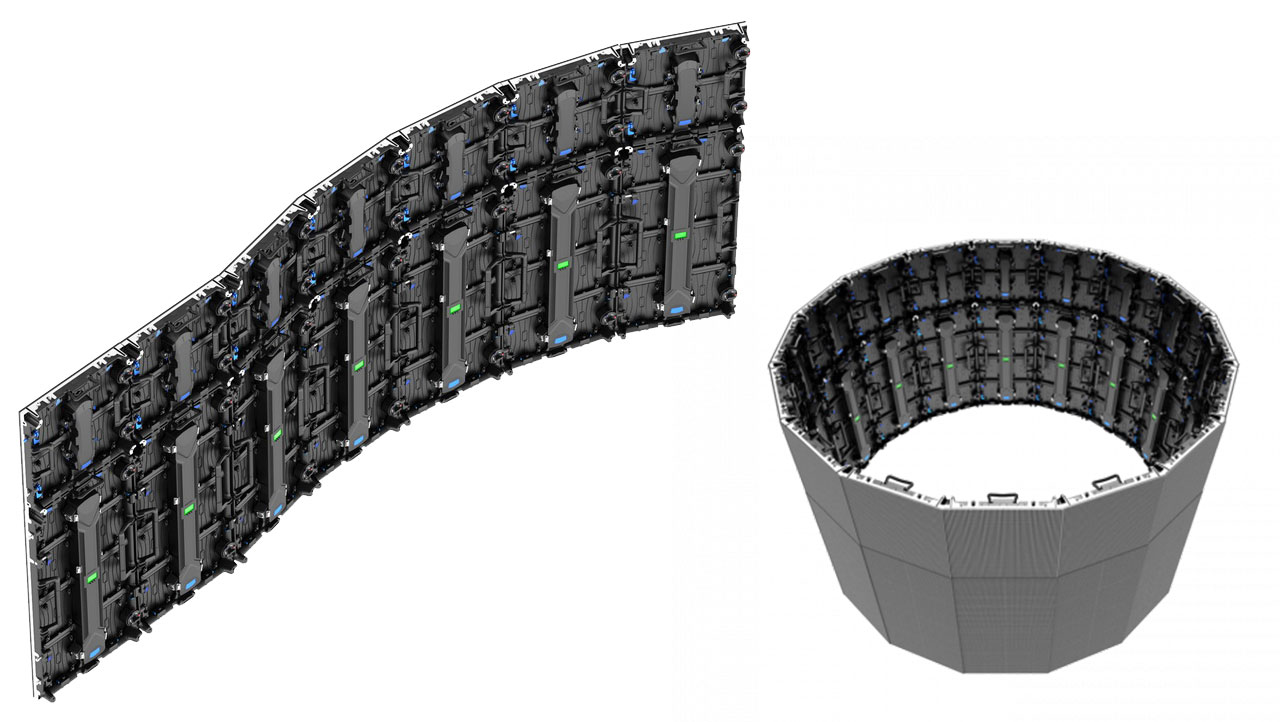

Curve Lock Optional

With curve locks, RL1000 Series Panel can makes both concave & convex LED wall, offering events designer more creative visual effect way on stage.

LED-panel-curve-installation

Specifications​​​

Model RX26L RX29L RX39L RXO39L RXO48L
Pixel Pitch 2.6mm 2.9mm 3.9mm 3.9mm 4.8mm
Application Indoor Indoor Indoor Outdoor  Outdoor
Resolution(W*H) 192*192 168*168 128*128 128*128 104*104
LED type SMD1415 SMD1415 SMD2020 SMD1921 SMD1921
Brightness ≥1000cd/m² ≥1000cd/m² ≥1000cd/m² ≥5000cd/m² ≥5000cd/m²
Viewing Distance ≥2.6m ≥2.9m ≥3.9m ≥3.9m ≥4.8m
Gray Level 16bit 16bit 16bit 16bit 16bit
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Input Power ≥110-220V 50/60Hz ≥110-220V 50/60Hz ≥110-220V 50/60Hz ≥110-220V 50/60Hz ≥110-220V 50/60Hz
Power consumption 360w-700w/m² 350w-680w/m² 320w-640w/m² 350w-680w/m² 350w-680w/m²
Service Type Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
IP Protection IP31 IP31 IP31 IP65 IP65
Working Temperature -30°C to +50°C -30°C to +50°C -30°C to +50°C -30°C to +50°C -30°C to +50°C
Working Humility 10-80% 10-80% 10-80% 10-80% 10-80%



Application Scenario
Shopping mall / School / Church / Hotel / Restaurants

Rental-LED-Panel-application
