Fine pitch LED Panel

SE Series

  • 640*480mm 4:3 ratio panel size, high resolution 1.2mm to 2.5mm pixel pitch

  • Magnesium alloy frame, precise and concise, all cables hidden inside panel

  • High contrast, vivid color image quality comparing to LCD display

  • Front access/service design, wall mounting installation, vacuum tool available

  • Inventory available, quick delivery

  • 3 year technical support and warranty, lifetime maintaining service

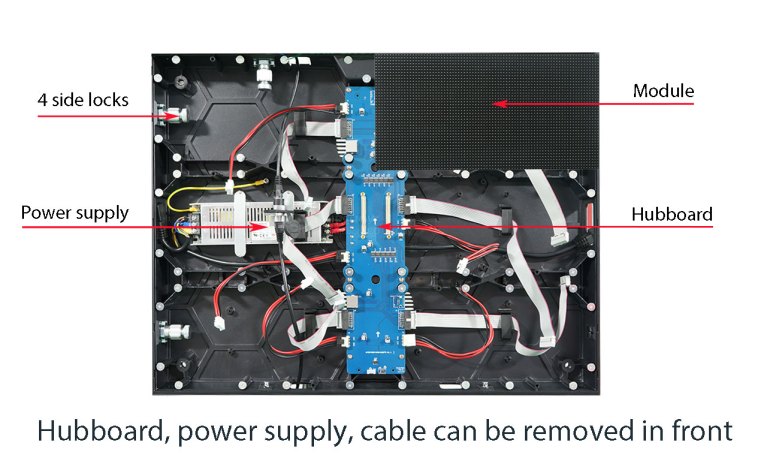

PANEL INSIDE VIEW

Modular design, easy to replace any parts quickly.

front-service-LED-Panel-structure
wall-mounting-install

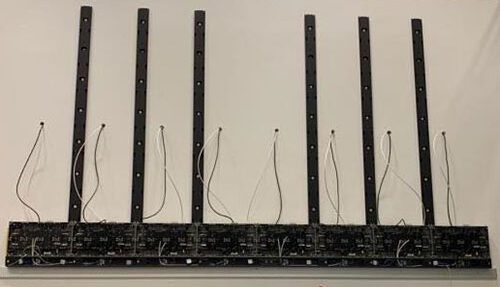

WALL MOUNTING INSTALLATION

Modular design, easy to replace any parts quickly.

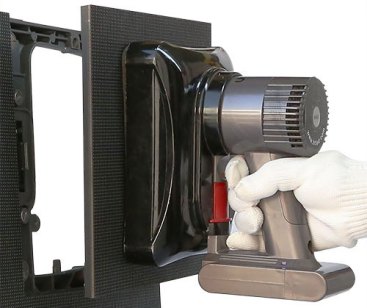

FRONT SERVICE VACUUM TOOL

With this powerful vacuum tool, magnet module is easy to take out of frame without damage.

LED-display-vacuum-tool





Model SE12 SE15 SE18 SE20 SE25
Pixel Pitch 1.25mm 1.53mm 1.86mm 2.0mm 2.5mm
Application Indoor Indoor Indoor Indoor  Indoor
Resolution(W*H) 512*384 416*312 344*258 320*240 256*192
LED type SMD1010 SMD1010 SMD1415 SMD1415 SMD2020
Brightness ≥800cd/m² ≥800cd/m² ≥800cd/m² ≥800cd/m² ≥800cd/m²
Viewing Distance ≥1.2m ≥1.5m ≥1.8m ≥2.0m ≥2.5m
Gray Level 16bit 16bit 16bit 16bit 16bit
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Input Power ≥110-220V 50/60Hz ≥110-220V 50/60Hz ≥110-220V 50/60Hz ≥110-220V 50/60Hz ≥110-220V 50/60Hz
Power consumption 180w-550w/m² 180w-550w/m² 180w-550w/m² 180w-550w/m² 180w-550w/m²
Service Type Front Front Front Front Front
IP Protection IP31 IP31 IP31 IP31 IP31
Working Temperature -30°C to +50°C -30°C to +50°C -30°C to +50°C -30°C to +50°C -30°C to +50°C
Working Humility 10-80% 10-80% 10-80% 10-80% 10-80%
Dimensions W x H x D 640*480*70mm 640*480*70mm 640*480*70mm 640*480*70mm 640*480*70mm
Weight 7kg/15.4lb 7kg/15.4lb 7kg/15.4lb 7kg/15.4lb 7kg/15.4lb
Life Span ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours



Application Scenario

Shopping mall/School/Church/Hotel/Restaurant

Indoor-LED-display-wall-application
