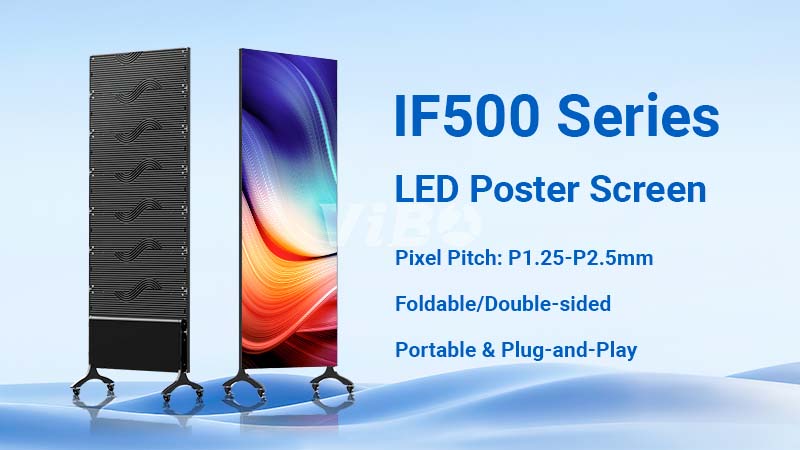

IF500 SERIES
IF500 Series Smart Poster LED Screen
- Foldable LED poster display
- Double-sided LED screen poster
- Multiple cabinet sizes and fine pixel pitches
- Plug-and-play smart control
- Front maintenance for convenient service
- Move, deploy and reuse across locations
IF500 Series Poster LED Screen Overview
The IF500 Series smart LED poster is a portable digital signage solution designed for eye-catching advertising without complicated installation.
Its slim die-cast aluminum cabinet combines a professional appearance with vivid images, high brightness and flexible playback for indoor commercial environments.
Use it as a single poster, foldable double-sided display or part of a multi-screen video wall in retail stores, malls, exhibitions, airports, hotels, restaurants and showrooms.

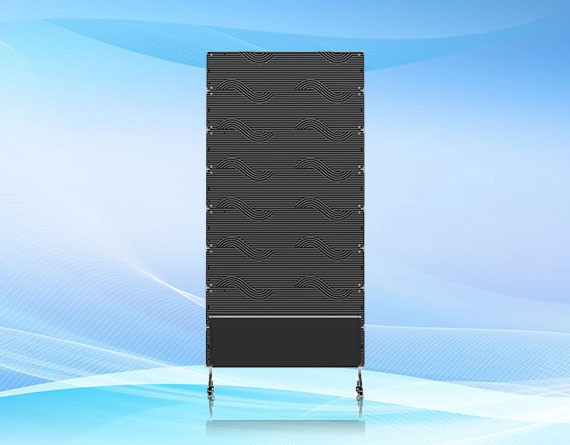

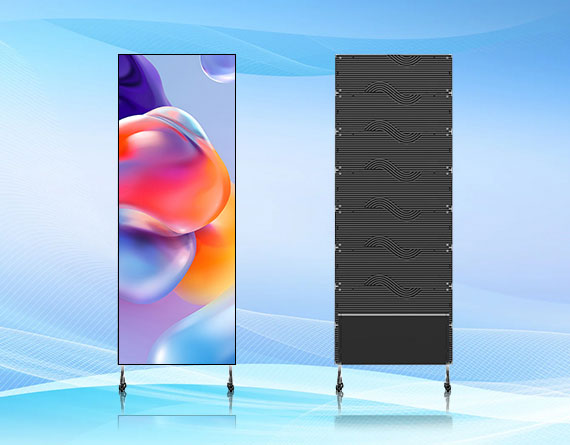

Quick Look at the IF500 Digital LED Poster
Core product highlights for comparing IF500 configurations.
Features of the IF500 LED Poster Display
A portable, foldable and expandable LED poster platform for flexible commercial signage.

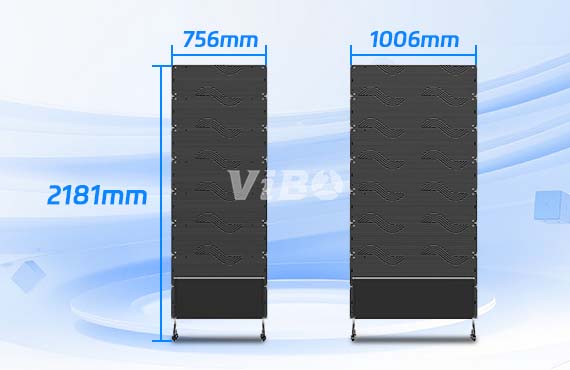

Multiple Screen Sizes
Choose 1006 × 2181 mm or 756 × 2181 mm cabinet formats. The foldable or double-sided configuration uses the 756 × 2181 mm format for retail, exhibitions, malls and commercial advertising.

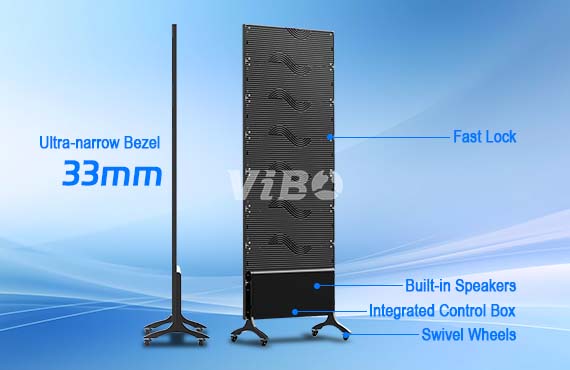

Premium Cabinet Design
An ultra-narrow 33 mm cabinet profile creates a clean appearance. Swivel wheels, built-in speakers, an integrated control box and fast locks simplify movement, installation and screen expansion.

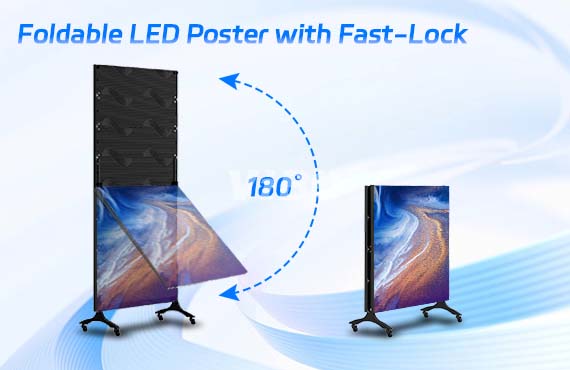

Foldable LED Poster with Fast Lock
The folding structure supports easier storage and transport. Secure fast locks stabilize the poster during use and let the two display faces fold together when required.

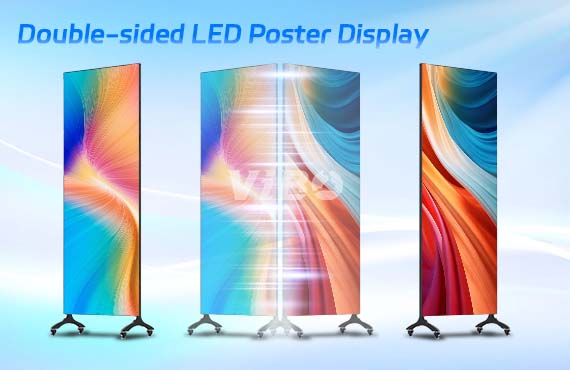

Double-Sided LED Poster Display
Show synchronized branding or different content on both sides to increase visibility in shopping malls, airports, retail entrances, hotels and exhibition halls.

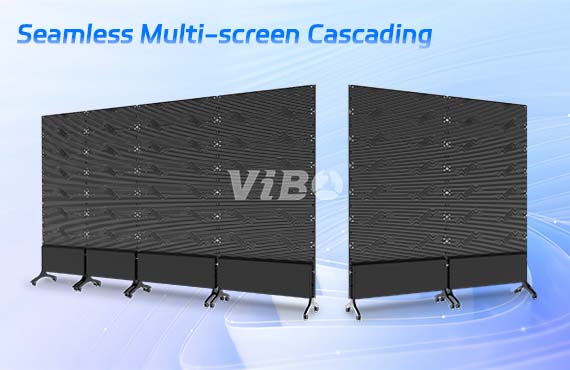

Seamless Multi-Screen Cascading
Combine up to eight LED posters within 2K resolution. The 1006 mm and 756 mm cabinet formats can be connected to build larger digital signage and creative video-wall arrangements.

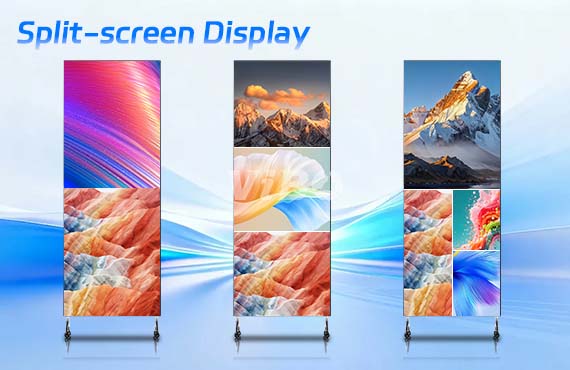

Smart Split-Screen Display
Use one, two or three content windows to show videos, images and promotional messages at the same time, increasing the amount of information presented on one display.

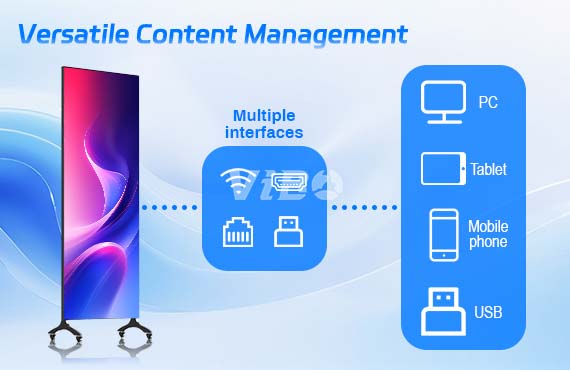

Versatile Content Management
Manage content through PC, smartphone, tablet, USB, Wi-Fi, HDMI or LAN. Synchronous and asynchronous playback support both live content and scheduled offline operation.

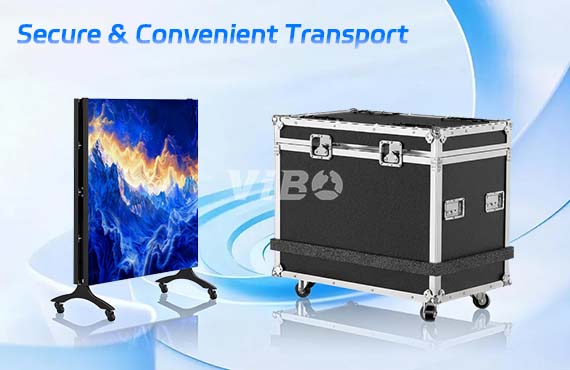

Secure & Convenient Transport
A professional flight case protects the display for international shipping and repeated deployment while supporting efficient loading, unloading and on-site setup.
Why Choose YVLED for Your LED Poster Project?
Configure the IF500 around the viewing distance, cabinet size, pixel pitch, content workflow and deployment requirements of the project.
- Professional LED poster product configuration
- OEM and project-specific customization support
- Production inspection and aging coordination
- Export packing and delivery planning
- Remote technical and after-sales guidance
- Flexible commercial display configurations
IF500 Technical Parameters
Key parameters for the IF500 Series LED advertising poster. Final specifications should be confirmed with the quotation.
| Technical parameter | P1.25 | P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
|---|---|---|---|---|---|---|---|
| Pixel type | SMD1010 (GOB) | SMD1212 / 1010 (GOB) | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Physical density (dots/m²) | 640,000 | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| Module size (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Screen size (mm) | 1000 × 2000 × 33 / 750 × 2000 × 33 | — | — | — | — | — | — |
| Cabinet size (mm) | 1006 × 2181 × 33 / 756 × 2181 × 33 | — | — | — | — | — | — |
| Maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
| Cabinet material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Brightness (cd/m²) | 600 | 600 | 800 | 800 | 800 | 800 | 1,000 |
| Viewing angle (H/V) | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° |
| Contrast ratio | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 |
| Scan mode | 1/50 | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Grey grade | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Max. consumption | 400 W/m² | 400 W/m² | 400 W/m² | 400 W/m² | 400 W/m² | 400 W/m² | 400 W/m² |
| Average consumption | 100–200 W/m² | 100–200 W/m² | 100–200 W/m² | 100–200 W/m² | 100–200 W/m² | 100–200 W/m² | 100–200 W/m² |
| Working voltage | AC90–264 V, 47–63 Hz | — | — | — | — | — | — |
| Operating humidity | 10%–85% RH | — | — | — | — | — | — |
Typical IF500 Applications
Portable LED poster signage for commercial communication, visitor engagement and public information.

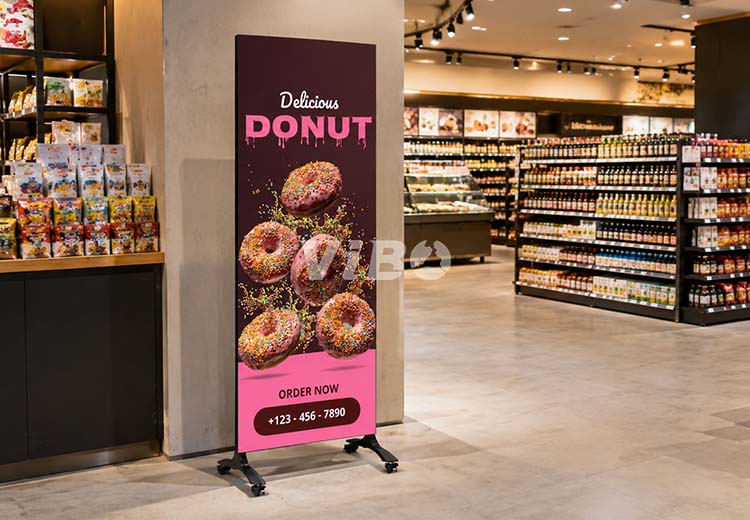

Retail Advertising
Present promotions, new arrivals and seasonal campaigns with bright, attention-grabbing digital signage.

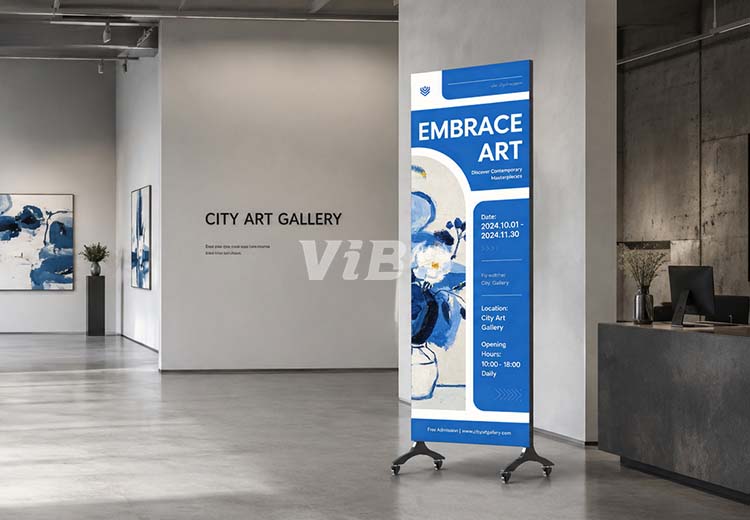

Trade Shows & Exhibitions
Use dynamic video and Wi-Fi content control to draw visitors toward booths, products and brand presentations.

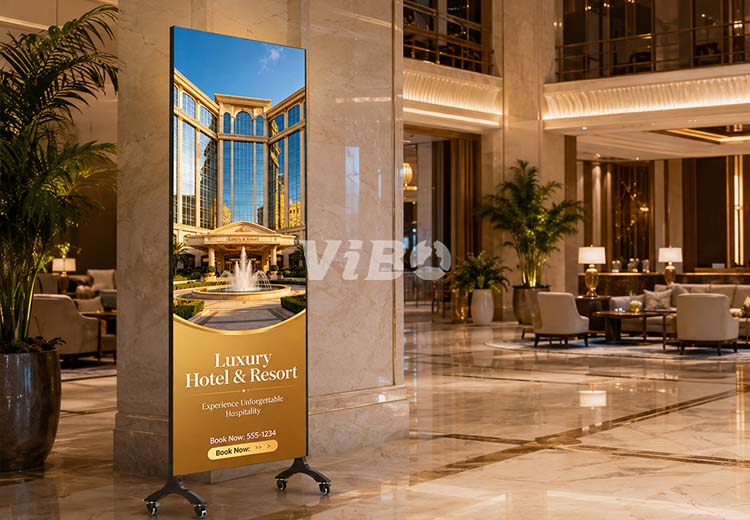

Hotel Reception
Display welcome messages, event schedules, wayfinding and promotional offers with a movable poster screen.

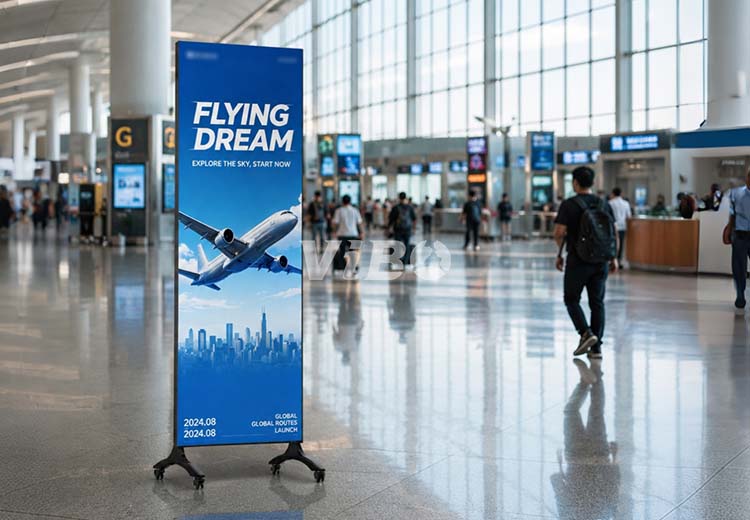

Transportation Hubs
Deliver advertising and public information in airports, railway stations and other busy passenger spaces.
Related LED Poster Products
Compare additional digital and foldable LED poster formats.

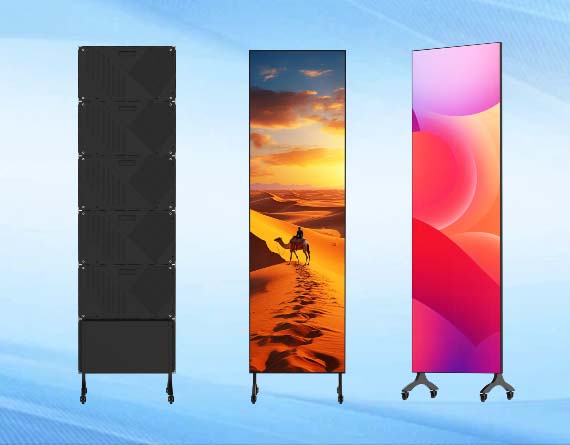

DP600 LED Poster Display

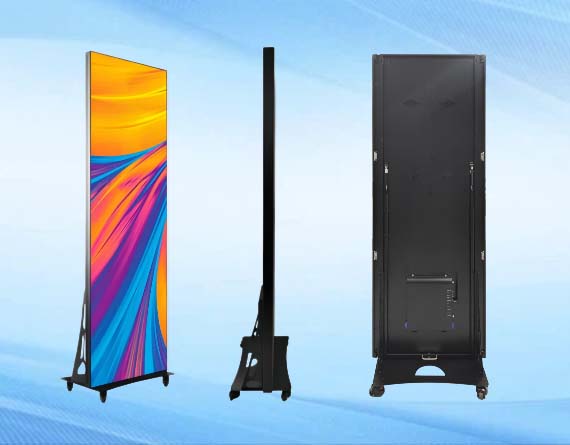

DP640 Digital LED Poster

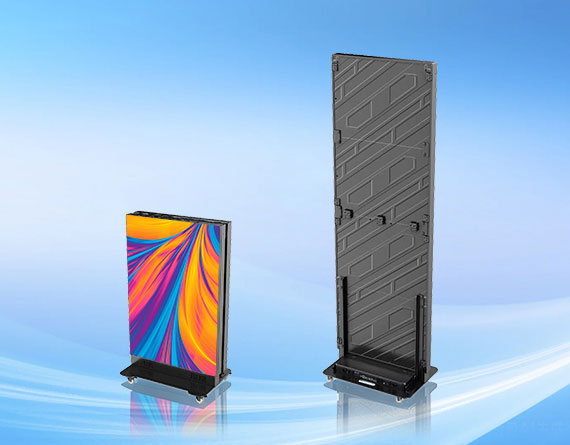

FP640 Foldable LED Poster
IF500 LED Poster FAQs
Answers to common questions about deployment, content control and expansion.
Need IF500 Advice?
Send your quantity, pixel pitch, cabinet format and destination for a focused quotation.
What is the difference between a foldable LED poster and a double-sided LED poster?
A foldable LED poster folds for transport and storage. When two display faces are used together, it can operate as a double-sided advertising display.
Can both sides display different content?
Yes. The two sides can show synchronized content or be managed independently, depending on the control configuration.
Is the IF500 easy to move?
Yes. The slim cabinet, swivel wheels, folding structure and flight case support movement and repeated deployment.
How many LED posters can be connected?
Up to eight IF500 posters can be cascaded within 2K resolution, subject to the final control-system configuration.
How is content updated?
Content can be updated through USB, Wi-Fi, LAN, HDMI, PC, smartphone or tablet.
Does the IF500 support split-screen content?
Yes. One-, two- and three-window layouts can show videos, images and advertising content simultaneously.
Is installation complicated?
The integrated design is intended for fast deployment. Position the display, connect power and complete the content/control setup.
Where is a double-sided LED poster commonly used?
Typical locations include retail entrances, malls, exhibitions, hotels, airports, restaurants and commercial lobbies.
Can the display be expanded into a larger LED wall?
Yes. Multiple IF500 units can be connected to create a wider video wall or multi-screen digital signage arrangement.
Why choose an LED poster instead of an LCD poster?
LED posters can offer higher brightness, seamless expansion, wide viewing angles and flexible modular configurations.
