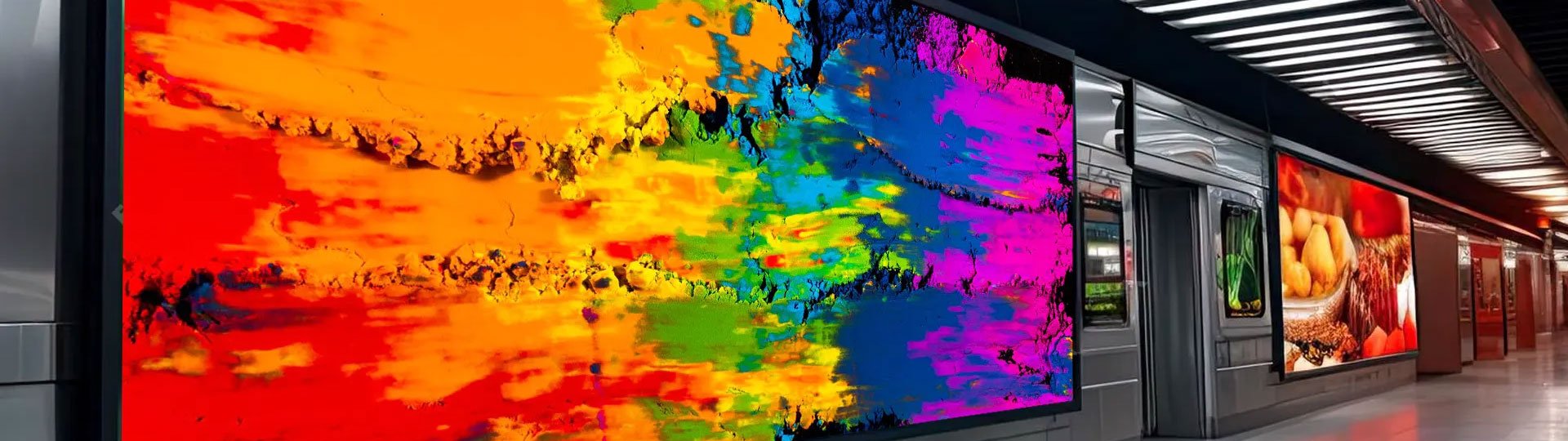

LED Displays for Every Application

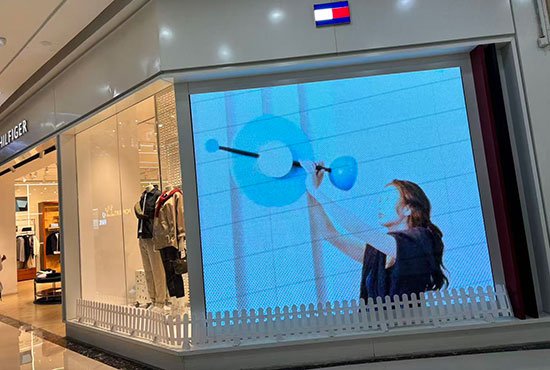

LED Display Screens Overview
LED displays are versatile tools for modern communication, widely used in advertising, events, sports, retail, studios and control centers.
High resolution, adjustable brightness, modular sizing and creative splicing options help deliver powerful visuals and effective messaging.
From indoor and outdoor displays to rental, poster, floor and transparent formats, YVLED can help compare a suitable screen configuration for the application.
LED Display Types We Offer
Compare mainstream LED packaging technologies before selecting a product family.

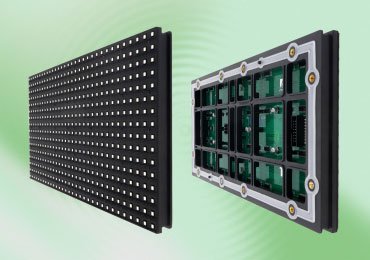

SMD LED Display
Surface-mounted LEDs provide wide viewing angles, strong brightness and stable performance for indoor and outdoor applications.

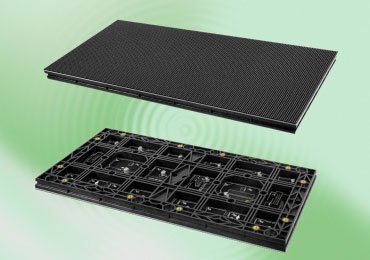

GOB LED Display
A protective glue-on-board layer improves impact, dust and moisture resistance for rental and high-traffic environments.

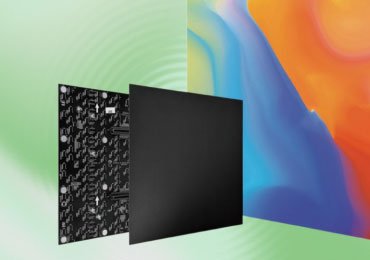

COB LED Display
Chip-on-board packaging supports fine pixel pitches, high contrast and a smooth surface for close-viewing applications.
Indoor LED Displays (5)
HD600 Indoor LED Display
- Pixel pitch: P0.78–P2.5mm
- Cabinet: 600 × 337.5mm
- Fine-pitch indoor display

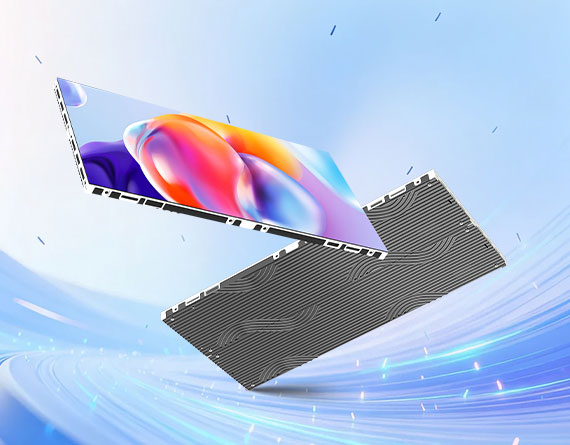

IF500 Indoor LED Display
- Pixel pitch: P1.25–P3.91mm
- Multiple cabinet dimensions
- Fixed or double-sided formats

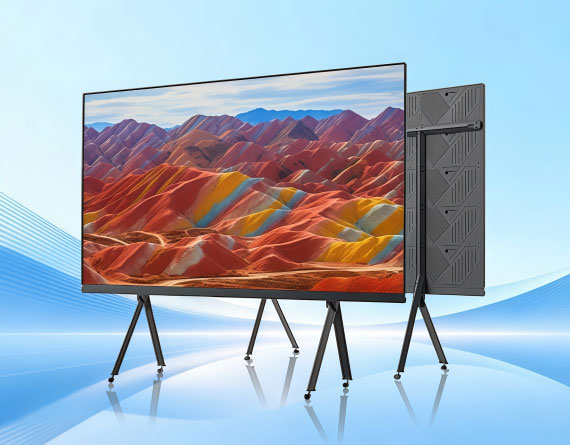

All-in-One LED Display
- Integrated control design
- Wireless screen projection
- 108, 136 and 163-inch formats

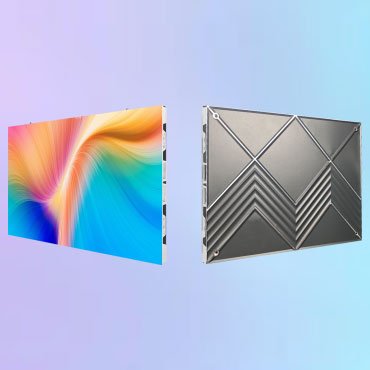

IF640 Indoor LED Display
- Pixel pitch: P1.25–P2.5mm
- Cabinet: 640 × 480mm
- SMD and GOB options

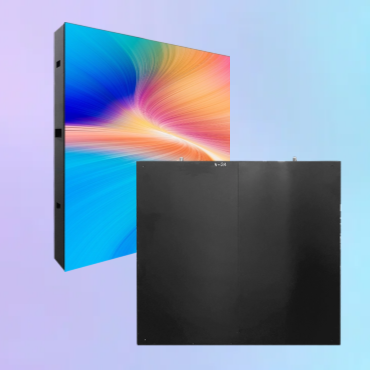

IF960 Indoor Fixed Display
- Pixel pitch: P2.5–P5mm
- Cabinet: 960 × 960mm
- Cost-effective fixed installation
COB LED Displays (3)

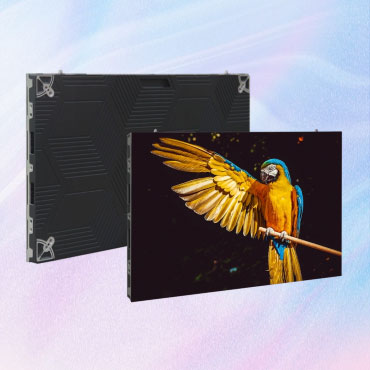

Fine-Pitch COB Screen
- Pixel pitch: P0.93–P1.56mm
- Cabinet: 600 × 337.5mm
- Common-cathode option

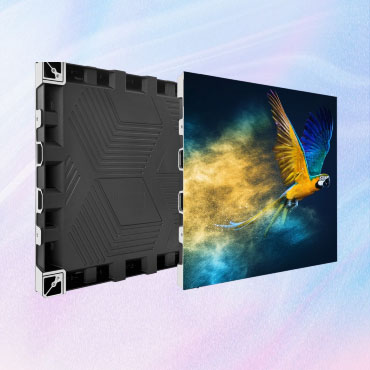

Indoor Fixed COB Display
- Pixel pitch: P1.25–P1.95mm
- High-contrast surface
- Close-viewing installations

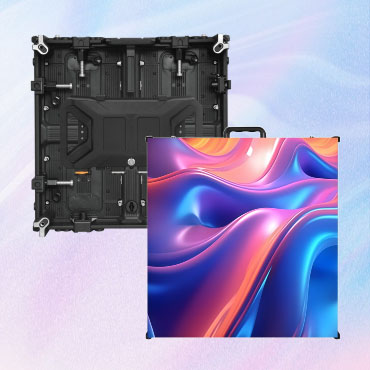

Outdoor COB Display
- Pixel pitch: P1.56–P1.95mm
- Fixed and rental formats
- Flip-chip COB technology
Outdoor LED Displays (3)
FM1000 Outdoor LED Display
- Pixel pitch: P2.97–P10.42mm
- Cabinet: 1000 × 1000mm
- Billboard and 3D display use

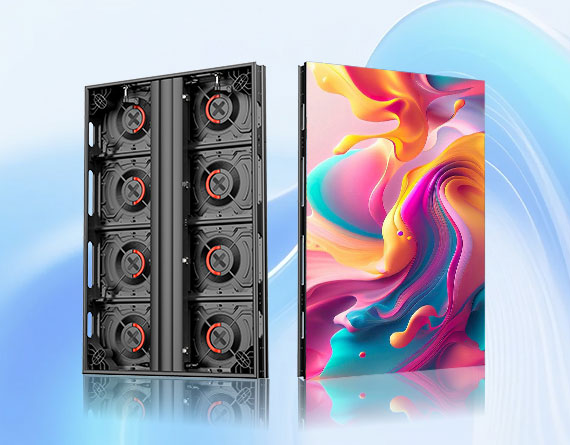

FM800 Outdoor LED Screen
- Pixel pitch: P4.16–P10mm
- Weather-resistant cabinet
- Advertising and perimeter use

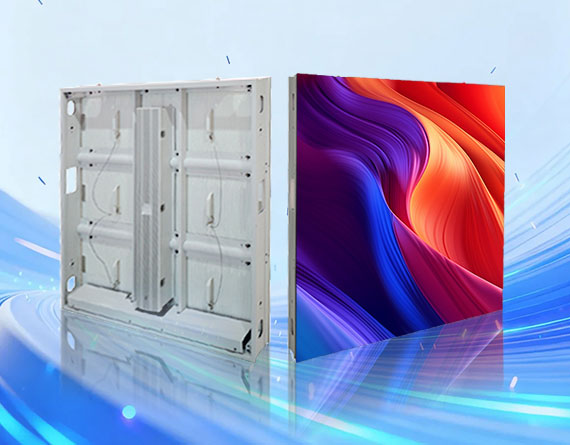

OE960 Outdoor LED Wall
- Pixel pitch: P4.44–P10mm
- Cabinet: 960 × 960mm
- Commercial outdoor display
Rental LED Displays (8)
Curved Rental LED Screen
- Concave and convex layouts
- Pixel pitch: P2.6–P3.91mm
- Indoor and outdoor options

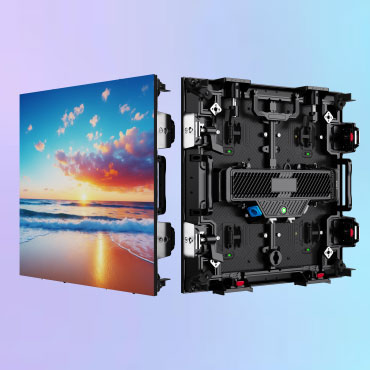

RX Pro Rental LED Panel
- Multiple cabinet options
- Creative corner configurations
- Premium event solution

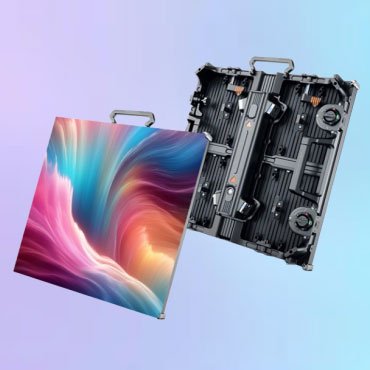

RX500 Rental LED Screen
- Pixel pitch: P1.95–P4.81mm
- Cabinet: 500 × 500mm
- Front and rear service

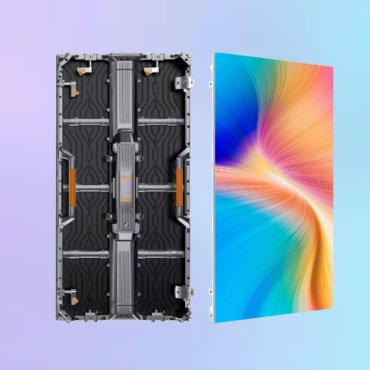

RentRock Pro Series
- Pixel pitch: P1.95–P4.81mm
- 500 × 500/1000mm cabinets
- Seamless event-screen connection

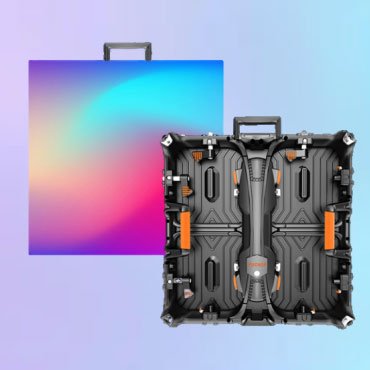

RZ500 LED Screen Hire
- Pixel pitch: P2.6–P4.81mm
- 500 × 500/1000mm cabinets
- Touring and staging format

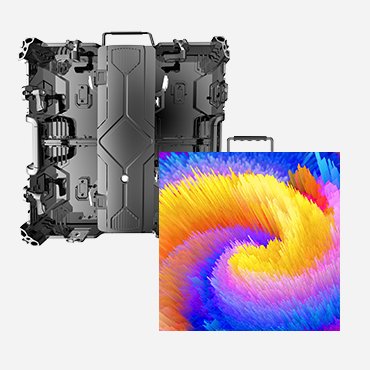

RentRock Rental Screen
- P2.97, P3.91 and P4.81
- Classic cable connections
- Reliable event-panel format

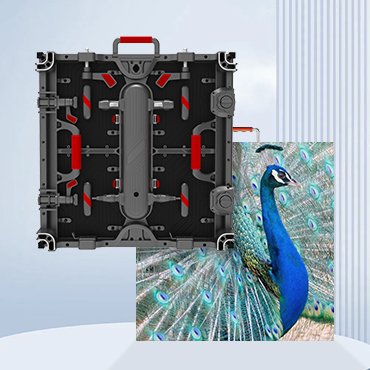

RentFine Pro Series
- P1.95, P2.6 and P2.97
- Hard connection design
- Front and rear maintenance

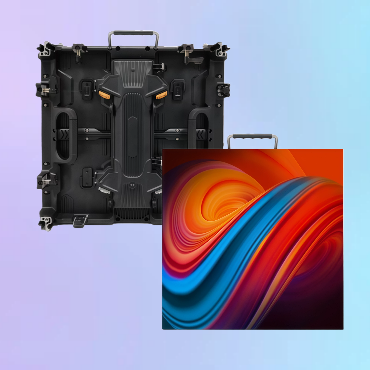

RentFine Rental LED Screen
- Pixel pitch: P1.95–P4.81mm
- Supports mixed splicing
- Soft-connection cabinet
Floor LED Displays (2)

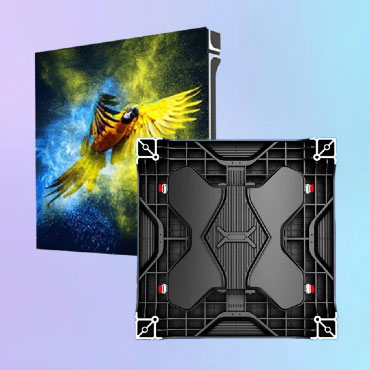

Interactive LED Floor Display
- 500 × 500mm cabinet
- Die-cast aluminum structure
- Optional interactive sensing

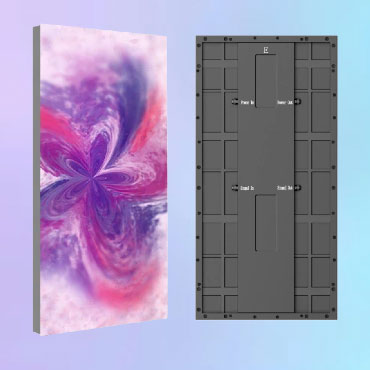

Durable LED Floor Tiles
- 500 × 500/1000mm formats
- Indoor and outdoor versions
- Anti-slip load-bearing surface
Poster LED Displays (4)
DP600 LED Poster
- Pixel pitch: P1.25–P1.875mm
- Cabinet: 600 × 2025mm
- Multiple playback options

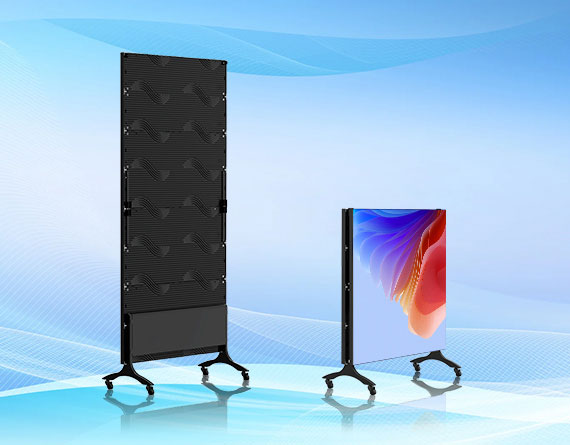

IF500 Foldable LED Poster
- Foldable or double-sided
- Multiple width options
- Multi-screen expansion

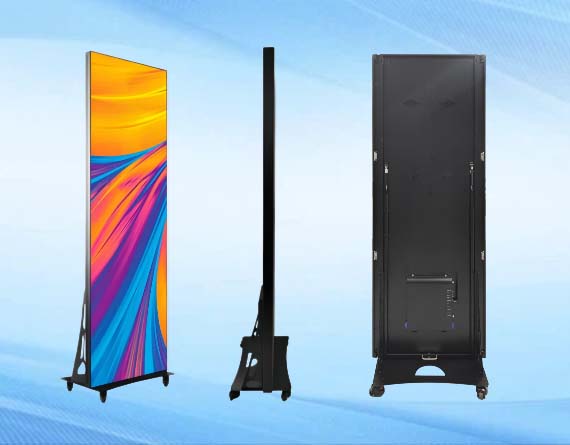

DP640 LED Poster
- Pixel pitch: P1.86–P2.5mm
- Cabinet: 640 × 1920mm
- Flexible installation options

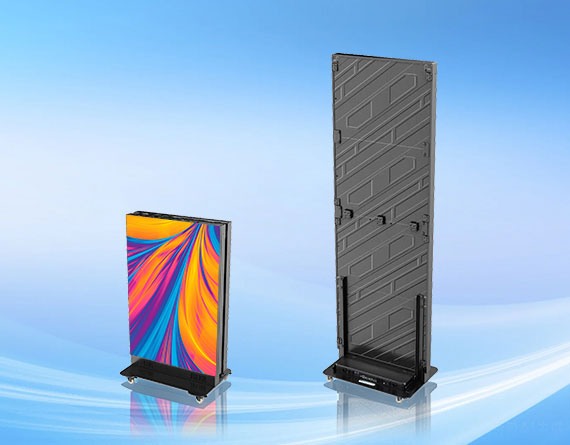

FP640 Foldable LED Poster
- Pixel pitch: P1.25–P2.5mm
- Cabinet: 640 × 1920mm
- Portable folding format
Commercial & Creative LED Displays (5)

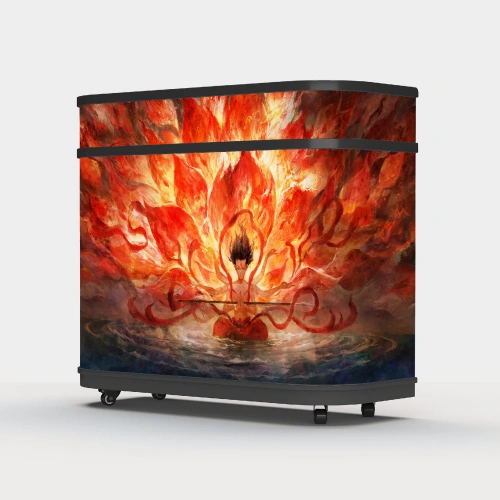

DJ Booth LED Screen
- Integrated HD LED façade
- GOB option for protection
- Customized plug-and-play sizes
Flexible LED Display
- Fine-pitch flexible modules
- SMD and GOB formats
- Curves, columns and creative shapes

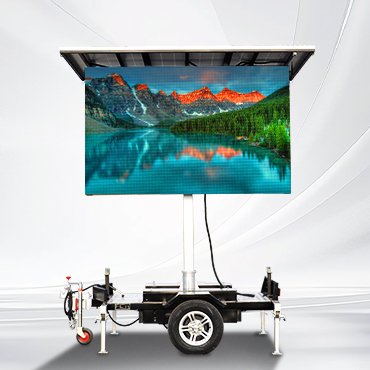

Mobile LED Display Trailer
- High-brightness outdoor screen
- Hydraulic lifting system
- Mobile event and advertising use

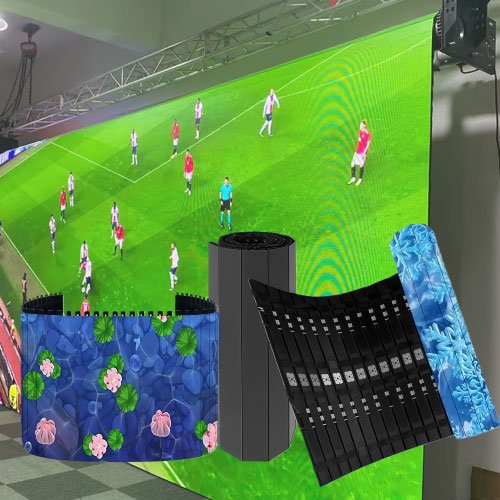

Roll-Up LED Screen
- Rolls for transport
- Lightweight flexible structure
- Creative suspended shapes

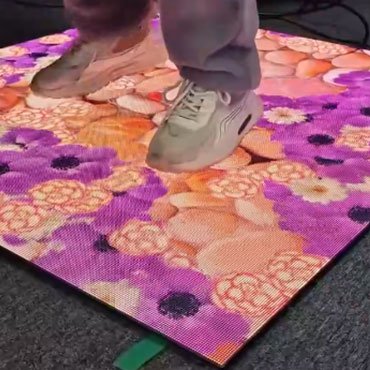

Commercial LED Floor
- Stage and dance-floor use
- Optional interactive effects
- Durable anti-slip surface
Transparent LED Displays (6)
LED Mesh Curtain
- High-transparency grid design
- Outdoor waterproof option
- Large façade installations

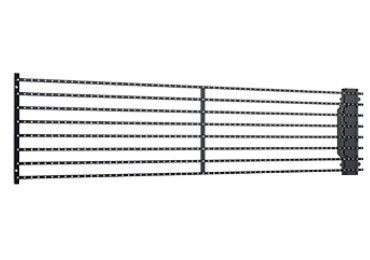

Transparent Grille LED Display
- High-transparency light strips
- Adjustable strip angle
- Architectural media façade use

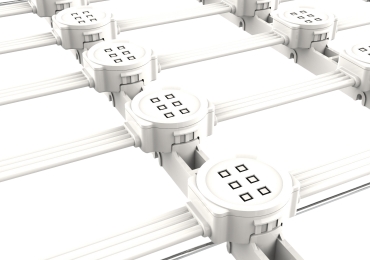

Flexible LED Mesh Screen
- Bendable and curvable
- Very high transparency
- Lightweight creative structure

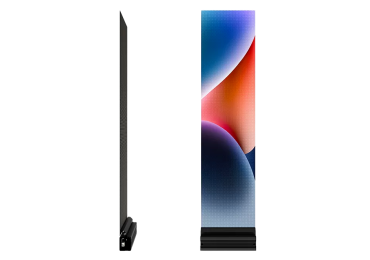

Holographic LED Display
- Floating visual effects
- Thin lightweight film
- Glass and retail applications
Drone Flying LED Screen
- Lightweight mesh construction
- High transparency
- Drone-show application format
Transparent LED Film
- High-transparency film
- Fits flat or curved glass
- Fast adhesive installation
LED Display Buying Guide: Everything You Need Before Ordering
Choosing the right LED display involves more than screen size. Application, viewing distance, environment, image quality, installation and budget all affect the final configuration.
Step 1. Define Your Application
Start by identifying where the display will operate and what content it must show. This determines brightness, pixel pitch, cabinet design and protection level.
| Application | Recommended display | Key requirement |
|---|---|---|
| Retail store | Indoor LED display | High resolution and vibrant color |
| Trade show | LED poster or rental display | Portable and fast to deploy |
| Conference room | Fine-pitch or COB display | Clear close-distance viewing |
| Church or auditorium | Indoor LED video wall | Wide viewing angle and seamless image |
| Stage and events | Rental LED display | Lightweight cabinet and quick locking |
| Outdoor advertising | Outdoor fixed LED display | High brightness and weather protection |
| Building façade | Transparent or mesh display | Lower visual obstruction |
| Stadium | Perimeter LED display | Durable cabinet and high refresh rate |

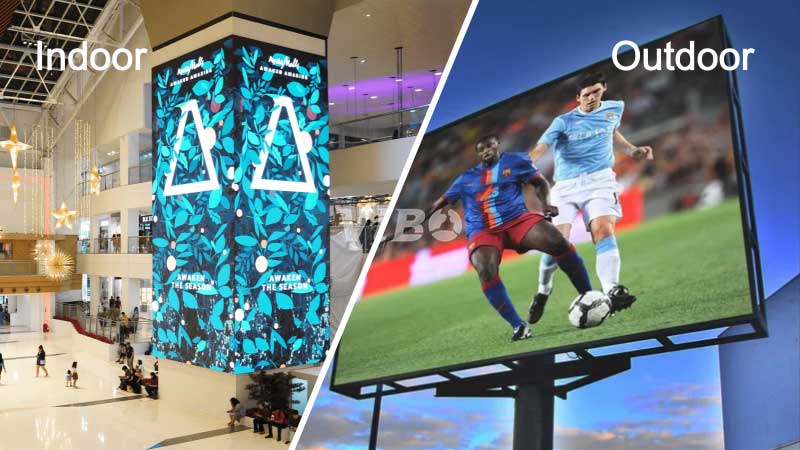

Step 2. Choose Indoor or Outdoor LED Display
Indoor and outdoor screens are designed for different lighting and environmental conditions. Outdoor installations normally require higher brightness and stronger protection.
| Feature | Indoor | Outdoor |
|---|---|---|
| Brightness | 600–1,500 nits | 5,000–10,000 nits |
| Protection | Typically IP43 | Typically IP65 or above |
| Pixel pitch | P0.9–P3.91mm | P2.5–P10mm |
| Viewing distance | Close viewing | Medium to long distance |
| Typical use | Retail, meeting rooms, studios | Billboards, venues, transport |
Step 3. Select the Right Pixel Pitch
Pixel pitch affects resolution and recommended viewing distance. A finer pitch is useful for close viewing, while a wider pitch can be more cost-effective for long-distance audiences.
| Minimum viewing distance | Typical pixel pitch |
|---|---|
| 1–2m | P1.25–P1.875 |
| 2–3m | P2–P2.5 |
| 3–5m | P2.5–P3.91 |
| 5–8m | P4–P5 |
| 8–15m | P6.67–P8 |
| 15m+ | P10 or above |
Step 4. Check the Key Specifications
Compare specifications in the context of the project instead of automatically selecting the highest value.
| Specification | Selection direction | Why it matters |
|---|---|---|
| Brightness | Match ambient light | Maintains readable images |
| Refresh rate | 3,840Hz or project-specific | Important for camera and live-event use |
| Protection rating | Indoor or IP65+ outdoor | Protects against dust and moisture |
| Cabinet material | Die-cast aluminum or steel | Affects weight and installation |
| Control system | NovaStar, Colorlight or suitable equivalent | Controls processing and playback |
| Maintenance | Front or rear service | Determines service space |

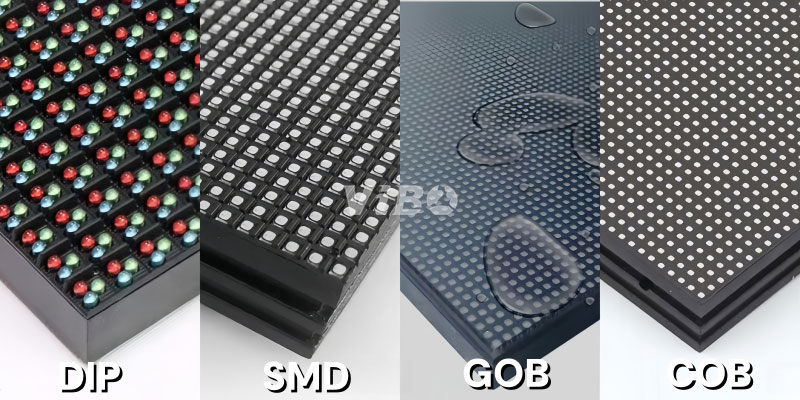

Step 5. Choose the Right LED Technology
SMD, GOB, COB and DIP packaging formats address different image-quality, durability and budget priorities.
| Technology | Main advantage | Common application |
|---|---|---|
| SMD | Mature, versatile and cost-effective | Most commercial applications |
| GOB | Improved impact and moisture resistance | Rental and high-traffic environments |
| COB | High contrast and smooth protected surface | Premium close-viewing installations |
| DIP | Very high brightness and long-distance visibility | Large outdoor displays |

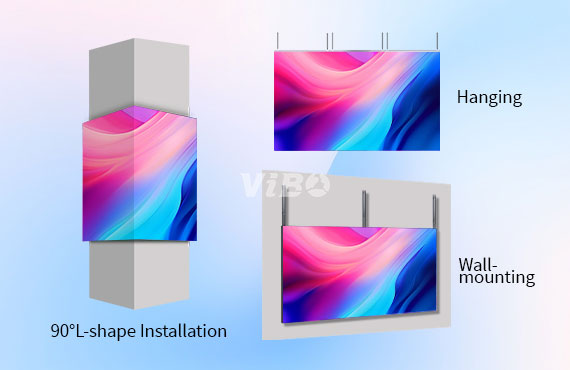

Step 6. Understand Installation Options
Installation affects visibility, structural design, maintenance access and total project cost.
| Method | Best for | Key characteristic |
|---|---|---|
| Wall mounted | Retail, meeting rooms, churches | Clean appearance and space-saving structure |
| Hanging | Stages, malls and exhibitions | Suspended from truss or ceiling |
| Floor standing | Posters, showrooms and events | Freestanding and movable |
| Column mounted | Outdoor billboards and public squares | Suitable for large outdoor media |
Step 7. Consider LED Display Screen Prices
These broad market-reference ranges are for early planning only. Final pricing depends on pixel pitch, screen area, brightness, cabinet material, control system, structure, shipping and customization.
| Display type | Typical reference range |
|---|---|
| Indoor LED display | $500–1,200/m² |
| Outdoor LED display | $700–2,000/m² |
| Rental LED display | $800–2,500/m² |
| Poster LED display | $1,300–3,500/unit |
| Fine-pitch LED display | $1,500–5,000+/m² |
| Transparent LED display | $800–2,500/m² |
| COB LED display | $2,000–6,000+/m² |
Factors That Affect LED Display Price
- Pixel pitch and total screen resolution
- Screen dimensions and cabinet quantity
- Indoor or outdoor brightness and protection
- SMD, GOB, COB or DIP technology
- Cabinet material and maintenance method
- Control system, spare parts and project accessories
- Shipping destination and installation requirements
Step 8. Avoid Common Buying Mistakes
- Selecting the smallest pixel pitch without considering viewing distance
- Using an indoor screen where sunlight, rain or dust is present
- Ignoring front-service or rear-service access
- Comparing only purchase price instead of reliability and operating cost
- Ordering without confirming spare modules, warranty and technical support
Step 9. Questions to Ask Before Choosing a Supplier
- Can the supplier provide cabinet and structure drawings?
- Are OEM or custom sizes supported?
- Which LED, driver, power and control components are used?
- What warranty and spare-parts package is included?
- Is installation guidance and remote technical support available?
- How is aging, inspection and packing documented before delivery?
Why Work With YVLED?
YVLED focuses on application-led selection, configurable cabinet formats, quality-control coordination and practical support for international LED display projects.
- Indoor, outdoor, rental and creative display categories
- Configuration support based on viewing distance and environment
- Project-specific screen dimensions and control planning
- Inspection, packing and delivery coordination
- Installation guidance and after-sales technical support

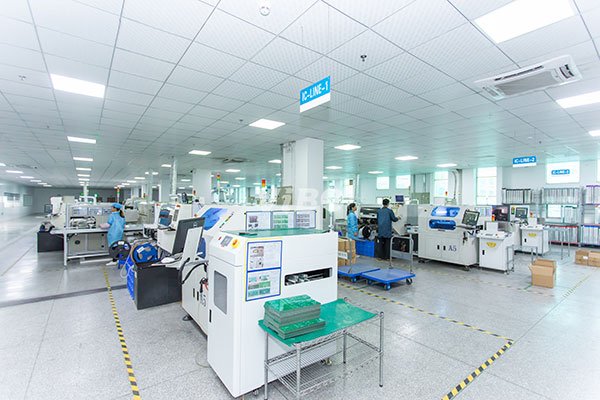

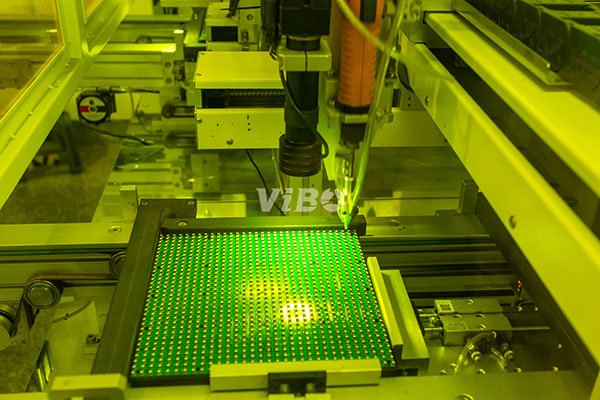

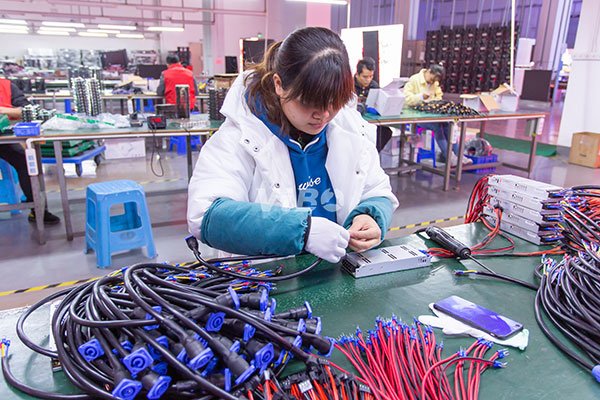

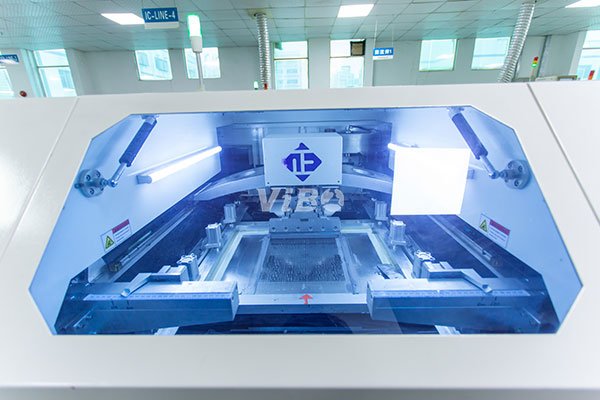

LED Display Factory & Production

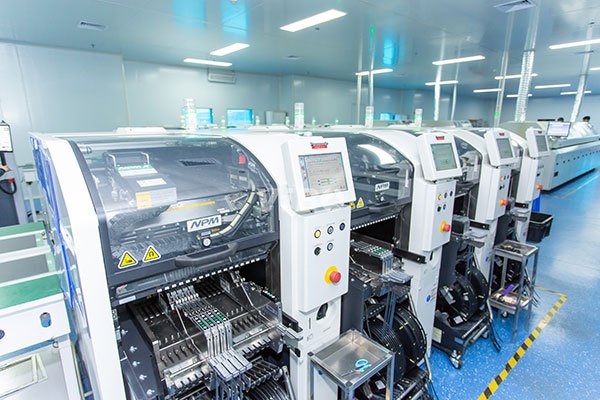

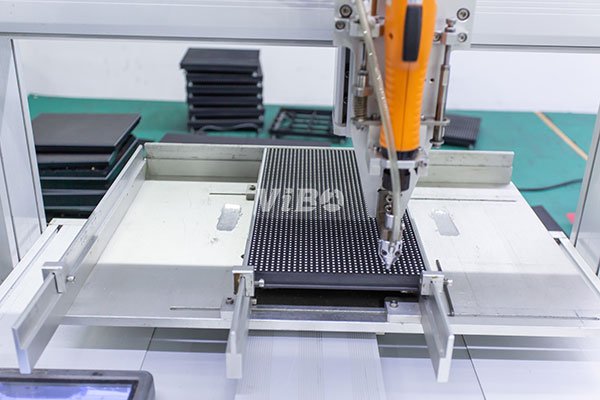

A visual look at SMT, assembly, IC and reflow production processes used for LED display manufacturing.
Ready to Choose the Right LED Display?
Tell us the application, screen width and height, viewing distance, installation environment and destination. Our team can recommend a suitable display category and prepare a quotation.
LED Display Frequently Asked Questions
Practical answers for comparing LED display categories and planning a quotation.
Need Help Choosing?
Send your application and dimensions for a focused recommendation.
What types of LED displays does YVLED offer?
YVLED supplies indoor, outdoor, rental, poster, floor, transparent, fine-pitch, COB and creative LED display formats.
How do I choose the right LED display?
Start with the indoor or outdoor environment, viewing distance, screen size, installation method, content and budget. These details determine the suitable product family and pixel pitch.
Can LED displays be customized?
Screen dimensions, cabinet arrangement, mounting method and some creative shapes can be configured around project requirements. Confirm feasibility during quotation.
What is the difference between SMD, GOB and COB?
SMD is versatile and cost-effective, GOB adds a protective surface, and COB supports a smooth, high-contrast surface for premium close viewing.
Do you provide installation and technical support?
YVLED can provide configuration, installation and troubleshooting guidance. The exact support scope should be confirmed in the project quotation.
