5% free spare parts / 3 Year Warranty / 24/7 technical support / lifetime Maintenance
The Zeno Series LED Poster Display is designed for seamless cascading. You can set them to a seamless LED wall in 5 minutes without any tools or structure.
Steps for Cascading Zeno LED Poster Display Wall
1. Fold the side baze to the back. 2. Lock each poster by the side lock. 3. Loop the HDMI cables between each LED Poster display.
Then you will get a big, seamless video wall (up to 8 units) in 5 minutes, without any structure or tools.
Specifications
| Model | Zeno-IP12(GOB) | Zeno-IP15(GOB) | Zeno-IP18(GOB) | Zeno-IP20(GOB) | Zeno-IP25 |
|---|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm |
| LED type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2020 |
| Resolution(W*H) | 512*1536 | 416*1248 | 344*1032 | 320*960 | 256*768 |
| Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 |
| Brightness | 600-800cd/m² | 600-800cd/m² | 600-800cd/m² | 600-800cd/m² | 600-800cd/m² |
| Viewing Distance | ≥1.2m | ≥1.5m | ≥1.8m | ≥2m | ≥2.5m |
| Gray Level | 16bit | 16bit | 16bit | 16bit | 16bit |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Input Power | ≥110-220V 50/60Hz | ≥110-220V 50/60Hz | ≥110-220V 50/60Hz | ≥110-220V 50/60Hz | ≥110-220V 50/60Hz |
| Power consumption | 190w-580w/m² | 190w-580w/m² | 190w-580w/m² | 150w-440w/m² | 160w-470w/m² |
| Service Type | Front | Front | Front | Front | Front |
| IP Protection | IP31 | IP31 | IP31 | IP31 | IP31 |
| Working Temperature | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C |
| Working Humility | 10-80% | 10-80% | 10-80% | 10-80% | 10-80% |
| Dimensions | 650*2020*50mm | 650*2020*50mm | 650*2020*50mm | 650*2020*50mm | 650*2020*50mm |
| Weight | 45kg | 45kg | 45kg | 45kg | 45kg |

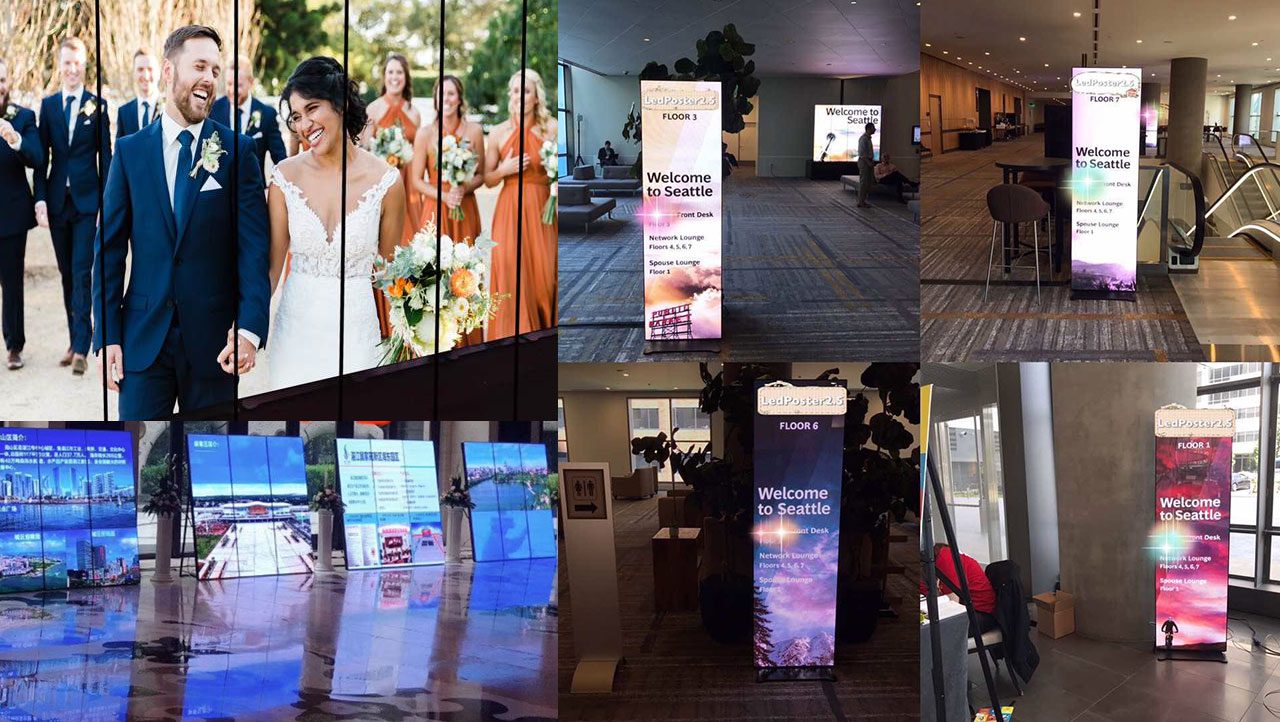

Applications Scenarios
Stores / Shopping mall / Bar / Club / Hotel / Restaurant
